75g 60g 4*4 5*5 Fiberglass Mesh C - Glass Yarn For Marble Backing

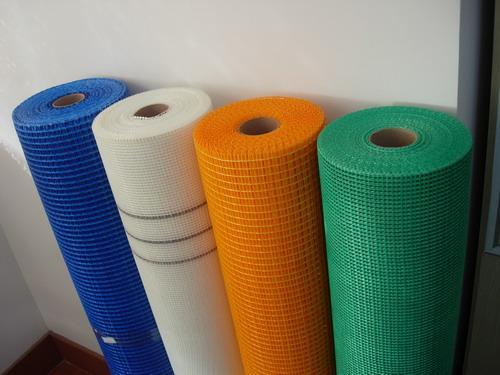

Alkali Resistant Fiberglass Mesh
Product Description:
Fiberglass mesh is mainly alkali-resistant fiberglass fabric, it made of the C or E
glass fiber yarn (main ingredient is a silicate, good chemical
stability) through a special weaving technique, then coated by the
anti-alkali and reinforcing agent and treated by high temperature
heat finishing. It’s ideal engineering material in construction and
decoration industry!
Usually have three different qualities,Platinum Crucible
emulsion,Tuguo emulsion,Urea-formaldehyde glue. price will be
different from left to right direction.
Fiberglass Mesh Features:
Fiberglass mesh is mainly alkali-resistant fiberglass fabric, it use the C /E
glass fiber yarn (main ingredient is a silicate, good chemical
stability) through a special weaving technique, then by the
anti-alkali and reinforcing agent etc high temperature heat
finishing treatments. It's ideal engineering material in
construction and decoration industry!
1.Good chemical stability: Alkali-resistant, acid-resistant,
waterproof,, cement erosion-resistant, and other chemicals'
corrosion resistant; and strong resin bonding, soluble in styrene.
2.Outstanding craftsmanship include coating enough alkali-resist
glue, our coating glue is produced by Germany BASF which can keep
60-80% strength after test in Naoh 28days later, so that guarantee
high strength, high tensility, light weight.
3.Our fiberglass yarn is supplied by Jushi Group which is the
largest producer of fiberglass yarn in the world like Saint Gobain,
it's 20% extra strong strength and beauty surface than normal
fiberglass yarn!
4.Strength retention rate> 90%, elongation <1%, the
durability of more than 50 years
5.Good dimensional stability, stiffness, smoothness an difficult to
shrink and deformation, good positioning property..
6.Good impact resistance and not easy to be teared.
7.Fire resistant, thermal insulation, sound insulation, insulations
etc.
Detailed Size:
| Item Number | Mesh size | Finsihed Weight | Tensile Strength×20cm |
| Warp | Weft | (g/m2) | Warp | Weft |
| 10*10-100 | 10 | 10 | 100 | 1000 | 1250 |
| 5*5-80 | 5 | 5 | 80 | 700 | 850 |
| 5*5-90 | 5 | 5 | 90 | 700 | 1050 |
| 5*5-125 | 5 | 5 | 125 | 1200 | 1300 |
| 5*5-145 | 5 | 5 | 145 | 1400 | 1500 |
| 5*5-160 | 5 | 5 | 160 | 1450 | 1600 |
| 4*4-135 | 4 | 4 | 135 | 1000 | 1300 |
| 4*4-160 | 4 | 4 | 160 | 1550 | 1650 |
| 4*4-100 | 4 | 4 | 100 | 750 | 1000 |
Product Application:
1. Wall reinforced material (such as fiberglass wall mesh, GRC wall
panels, EPS insulation with the wall board, gypsum board, bitumen
etc)
2. Reinforced cement products.
3. Used for Granite, mosaic, marble back mesh etc.
4. Fabric waterproof membrane, asphalt roofing.
5. Framework material for einforced plastics, rubber products,.
6. Fire board.
7. Grinding wheel base fabric.
8. Road surface with geogrid
9. Construction caulking tape etc.
Example of applications:
1.75g / m2 mesh fabric used in the reinforcement of thin slurry, to
eliminate small cracks and scattered throughout the surface
pressure.
2.110g / m2 mesh cloth is widely used in indoor and outdoor walls,
prevent the various materials (such as brick, light wood,
prefabricated structure) of treatment or caused by a variety of
expansion coefficient of wall crack and break .
3. 145g/m2 mesh fabric used in the wall and be mixed in various
materials (such as brick, light wood, prefabricated structures), to
prevent cracking and scatter the whole surface pressure, especially
in the external wall insulation system (EIFS ).
4. 160g / m2 mesh fabric used in insulator layer of reinforcement
in the mortar, through shrinkage and temperature changes by
providing a space to maintain movement between the layers, prevent
crack and rupture due to shrinkage or temperature change.
