5*5mm External Wall Insulation Fiberglass Mesh Coated With An
Emulsion
Introduction
Fiberglass mesh is woven by fiberglass yarns, then
alkaline-resistant latex coated. It owns great alkaline-resistant
and high strength. As a perfect engineering material in
construction, It is widely used to reinforce cement, stone, wall
materials, roofing, gypsum and so on.
Fiberglass mesh on the basis of C-glass or E-glass fiberglass woven
mesh, then coated with alkali resistant liquid. It possesses
properties of high strength, good cohesion, and anti alkali.
Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and
then coated by alkaline resistant latex. It has fine
alkaline-resistant, high strength, etc. As an ideal engineering
material in construction, it is mainly used to reinforce cement,
stone, wall materials, roofing, and gypsum and so on.
Specification
Material of the base:Fiberglass yarn
Type of weave (name):Leno
Hole Size:2.8x2.8mm,4x4mm,5x5mm,10x10mm

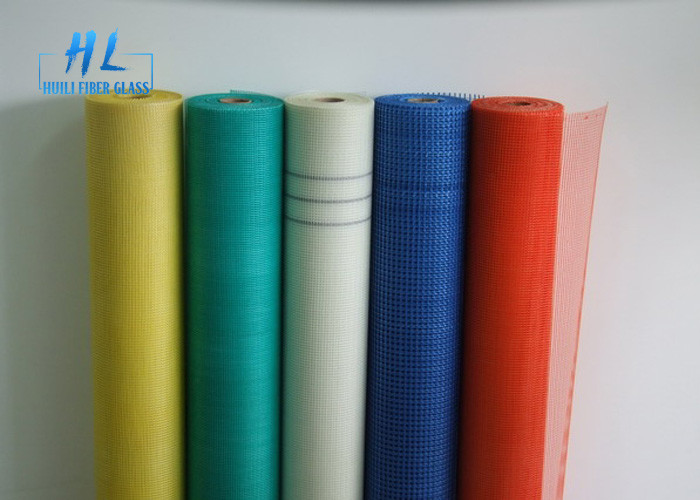

Colored fibers woven:White,Green,Blue,Orange,and any color
Coating:Latex Coating, Urea Coating
Length of the roll:30m,50m,100m.
Height of the roll:0.2m,0.5m,1m,1.2m,1.5m,1.8m,
Weighting:45g,80g,100g,110g,120g,150g,160g and so on.
| NO. | Specifications | Mesh size
mm | Yarn density
(tex) | Mass
g/m2 | Tensile strength
N/5X20cm |
| warp | weft | warp | weft | warp | weft |
| 1 | 4×4-75 | 4 | 4 | 48/2 | 200 | 75±3 | 700 | 850 |
| 2 | 4×4-90 | 4 | 4 | 67/2 | 200 | 90±3 | 950 | 1100 |
| 3 | 4×4-145 | 4 | 4 | 134/2 | 240 | 145±5 | 1500 | 1500 |
| 4 | 4×4-160 | 4 | 4 | 134/2 | 300 | 160±5 | 1500 | 1650 |
| 5 | 4×5-110 | 4 | 5 | 100/2 | 360 | 110±5 | 1100 | 1200 |
| 6 | 4×5-125 | 4 | 5 | 100/2 | 280 | 125±5 | 1200 | 1300 |
| 7 | 4×5-145 | 4 | 5 | 134/2 | 300 | 145±5 | 1400 | 1400 |
| 8 | 4×5-160 | 4 | 5 | 134/2 | 360 | 160±5 | 1500 | 1600 |
| 9 | 5×5-90 | 5 | 5 | 67/2 | 240 | 90±3 | 950 | 1150 |
Usage
1. 75g / m2 or less: Used in the reinforcement of thin slurry, to
eliminate small cracks and scattered throughout the surface
pressure.
2. 110g / m2 or about: Widely used in indoor and outdoor walls,
prevent the various materials (such as brick, light wood,
prefabricated structure) of treatment or caused by a variety of
expansion coefficient of wall crack and break .
3. 145g/m2 or about: Used in the wall and be mixed in various
materials (such as brick, light wood, prefabricated structures), to
prevent cracking and scatter the whole surface pressure, especially
in the external wall insulation system (EIFS ).
4. 160g / m2 or about: Used in insulator layer of reinforcement in
the mortar, through shrinkage and temperature changes by providing
a space to maintain movement between the layers, prevent crack and
rupture due to shrinkage or temperature.
Feature
1.Excellent alkaline resistance and corrosion resistance
2.High tensile strength and impact resistance
3.Good dimensional stability and deformation resistance
4.Good adhesion with resins and water resistance
5.Temperature stability and flame resistance
6.Soft, flexible and well arranged, simple and easy to apply
7.Resistance to aging
8.Durable, versatile and cost-effective
